CBS Cryo Storage Freezer

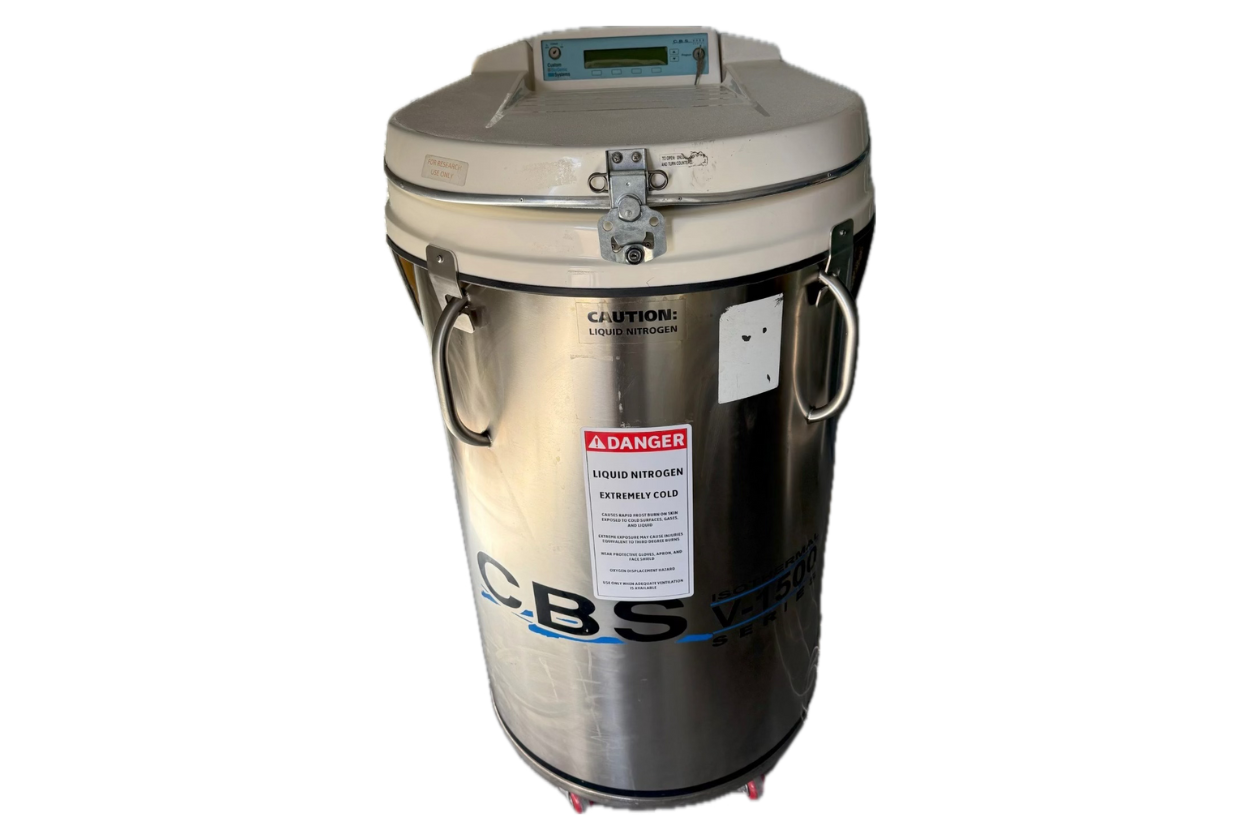

CBS V-1500A with 2300 Series Controller Jacketed Isothermal Freezer
This unit came from a lab that just shut down operations in San Diego. This unit was being used up to last week and was calibrated with preventative maintence recently completed.
From the Manufacturer:
Samples stored in our jacketed Isothermal freezers are completely isolated from contact with liquid nitrogen, which is contained in a space between the inner chamber and middle walls of the freezer. The Isothermal’s LN2 layer blankets the wall of the storage area to produce temperature uniformity not possible in ordinary liquid nitrogen freezers.
Contactless freezing greatly reduces the chance of sample cross-contamination, eliminates the risk of liquid nitrogen leaking into samples, increases staff safety, and provides more storage space when compared to traditional liquid nitrogen freezers.
Isothermal Freezers are offered in two configurations; the standard V Series, and the carousel models, designed for use with ceiling height restrictions.
V Series Isothermal Freezers
Features wide lid opening that makes it easy to see all of your racks at once and quickly retrieve the one you need. Quick rack retrieval time minimizes exposure time to ambient temperatures and helps to ensure a consistent storage temperature.
Isothermal Freezers
Advanced Sample Protection
Storage in liquid nitrogen can make vials shrink. Shrinkage can cause LN2 to seep into the vials, which on re-warming, can expand and subsequently explode as nitrogen vaporizes inside the vials. Dry storage eliminates this possibility.
Increased Safety
Our exclusive jacket design provides enhanced safety by eliminating contact with or splashing of liquid nitrogen.
More Storage Space
Our innovative jacket technology creates more storage space by eliminating the need for LN2 at the bottom of the storage chamber. Typical cryogenic freezers lose at least six inches of usable space to pooled LN2.
Reduced Contamination Risks
Studies show that viral, bacterial and fungal pathogens can survive after suspension in liquid nitrogen. By eliminating liquid in the storage area, our dry freezers greatly reduce the possibility of cross-contamination by infected samples.
Remotely Monitor Sample Performance
Our Isothermal LN2 freezers are available with optional SenseAnywhere technology, which combines wireless sensors and secure cloud storage, to easily monitor and track the Isothermal freezer performance from anywhere 24/7.
Description:
CBS “ISOTHERMAL” liquid nitrogen vapor storage systems allow frozen sample storage at liquid nitrogen temperatures without liquid nitrogen contact. This innovative design provides storage temperatures in the -190 degree C range with absolutely no liquid nitrogen in the sample storage space. The PATENTED system totally eliminates the need to submerge any type of sample in the liquid nitrogen. Each vapor storage system includes the advanced 2300 auto-fill/monitoring control to provide security and ease of operation.
Specifications:
Static Holding Days: 6
Static Evaporation Rate (liters/days): 5
Liquid Nitrogen Capacity - liters: 30
External Dimensions:
Width (in/mm): 26/660
Depth (in/mm): 37/939
Height (in/mm): 45/1143
Usable Interior Height (in/mm): 29/736
Usable Interior Diameter (in/mm): 21/534
Weight Empty (lbs/kg): 327/148
Weight Full (lbs/kg): 383/174
Max. Vial Capacity (2ml): 9100
Max. Blood Bag Capacity (50ml): 434
Store samples at liquid nitrogen temperatures with no liquid nitrogen contact
Same internal usable space as existing liquid nitrogen freezers - no lost storage space
Eliminates possibility of sample cross contamination
Accommodates all standard rack systems
Added user safety eliminating contact or splashing of liquid nitrogen
Increased interior visibility
Minimal interior temperature gradient
Round space saving design
Stainless steel vessel
Item is listed as local pickup in the San Diego area. Please contact us for a shipping quote!
