Ohaus Navigator NV2101 Balance
Multi-purpose Balances with Touchless Sensors that Power Hands-Free Operation!

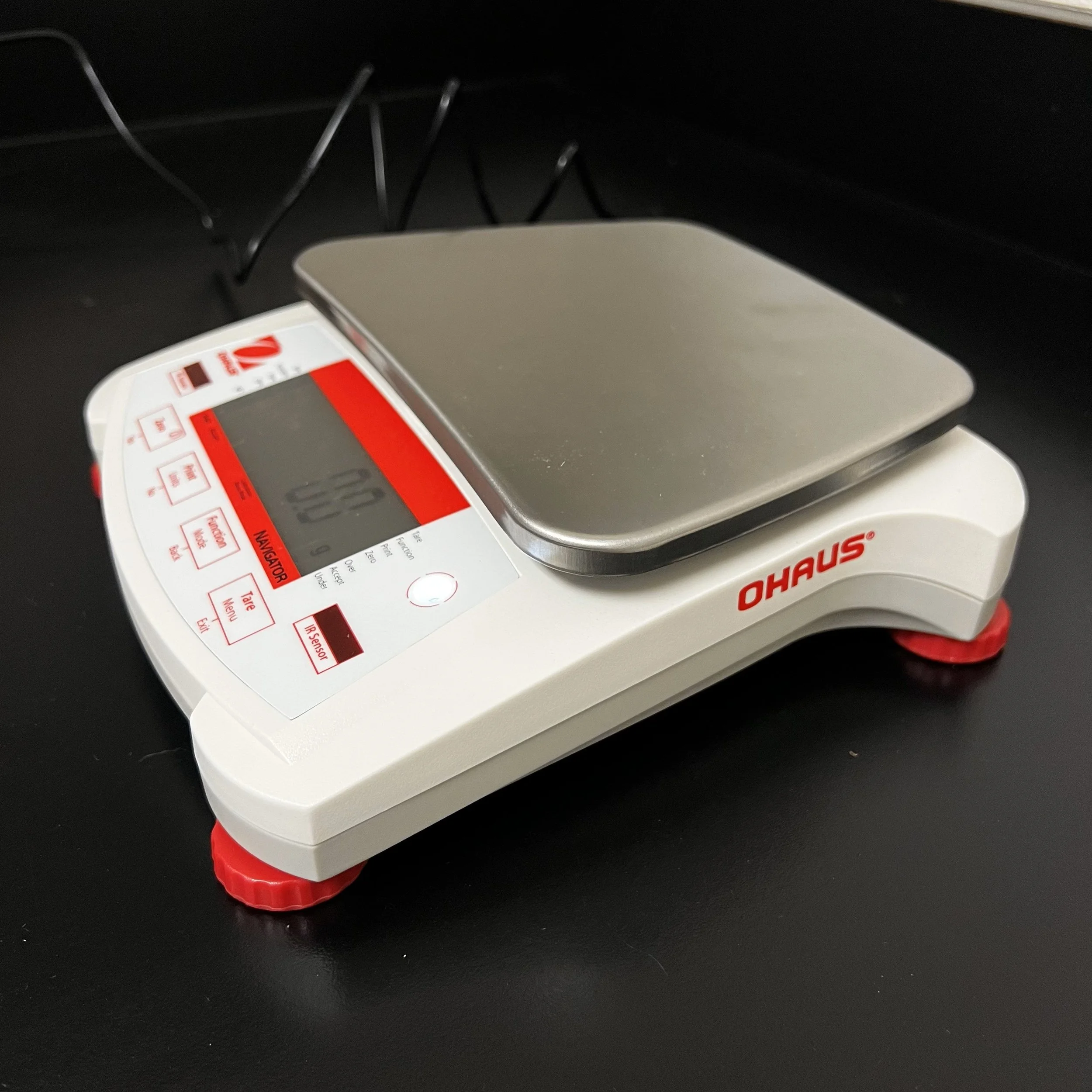

Navigator™ NV2101
The Navigator NV has a winning combination of modern features, including touchless sensors that provide hands-free operation, a large LCD display, ultra-fast response time, and superior overload protection. With maximum capacities up to 5kg, Navigator NV offers the best-in-class combination of features, versatility and performance that fit a wide range of industrial, food and laboratory weighing applications.
Applications
Weighing, Parts Counting, Percent Weighing, Checkweighing, Totalization, Display Hold
Display
Backlit Liquid Crystal Display (LCD)
Operation
AC adapter (included) or 4 AA batteries (not included)
Communication
RS232, USB or Ethernet with integrated cable (available as accessories)
Construction
ABS housing, stainless steel pan, transportation lock, security bracket, calibration lock switch, two touchless sensors, up-front level indicator
Design Features
User-selectable communication and print settings, mechanical and software overload/underload protection, auto shut-off
Specifications
Maximum Capacity 2,100 g
Readability0.0005 lb (0.1 g)
Pan Size 5.4 in x 7.5 in (138 mm x 190 mm)
Battery Life 80 Hours with Disposable Batteries
Communication Ethernet (Available as an Accessory); RS232 (Available as an Accessory); USB (Available as an Accessory)
Auxiliary Display Model Not Applicable
Dimensions 8.4 in x 2.3 in x 8 in (212 mm x 58 mm x 204 mm) (LxHxW)
Display LCD with backlight
In-Use Cover Available as an Accessory
Legal for Trade Not Applicable
Linearity ±0.2 g
Net Weight 3.1 lb (1.4 kg)
Pan Construction Stainless Steel
Power 4 AA (LR6) Batteries (Not Included)
Repeatability, typical 0.1 g
Stabilization Time 1 s
Tare Range To capacity by subtraction
Transportation Case Available as an Accessory
Units of Measurement Singapore Tael; Ounce Troy; Pennyweight; Grain; Kilogram; Pound:Ounce (fractional); Tical; Pound: Ounce; Newton; Taiwan Tael; Gram; Hong Kong Tael; Pound; Tola; Carat; Ounce
Working Environment 50°F – 104°F, 85%RH, non-condensing (10°C – 40°C, 85% RH, non-condensing)
