Bruker Minispec MQ60 - Installed September 2023
This Minispec was purchased and installed in September 2023 and is still under warranty. The unit is currently being used by a biotechnology company going out of business. This specific unit has the blue laser (50 mw) and comes with attached chiller and computer.
The Bruker minispec is a benchtop Time Domain NMR system ideal for solving molecular mobility problems in food, agriculture, textile, pharmaceutical, and other industries. With a large variety of configurations and accessories to choose from, we can help you find the minispec optimized for your application.
The minispec MQ series offers the most comprehensive range of measurement frequencies known today, ranging from 7.5 MHz for samples with large diameters, via 20 MHz to the unparalleled mq60 with 60 MHz operating frequency.
While the minispec mq-one series features the best possible performance-to-footprint ratio for common QC applications, the minispec mq series offers multi-application support and a wide range of upgrade features, like tool-free exchangeable probes, variable temperature NMR probes and pulsed field gradient systems.
Multinuclear NMR and variable frequency 5 – 60 MHz
Wide range of magnet fields plus a unique 60 MHz system
Ethernet connection from PC to minispec electronic unit
Remote control, system logging and daily check
Bruker minispec application pool containing all standard and advanced applications
Wide range of probe heads (absolute, ratio, combined, temperature controlled, gradients), temperature range: -100 to +200 °C
Fast magnet warm-up and precise digital temperature regulation for ultimate stability of results
Tool-free exchange of Plug-n-Play probes with auto-recognition
Linear transmitter with digital pulse attenuation (optional)
Highly linear fast signal detection
Virtually unlimited number of pulses and echoes
Pulsed field gradients (optional)
Zero-maintenance units without direct air exchange
Proven track record, long MTBF minispec application and service support
Additional Info:
The minispec mq60 Advanced 1.41 T/60 MHz Analyzer with Variable Temperature:
-Unique 1.4 Tesla, 60 MHz the Minispec TD-NMR system, especially suited for MRI contrast agent research
- The minispec mq-Series are flexible TDE-NMR Analyzers and can potentially also be used for other applications, of course depending upon system configuration.
-The minispec mq60 Analyzer accommodates sample tubes of 7.5 m outer diameter and consists of:

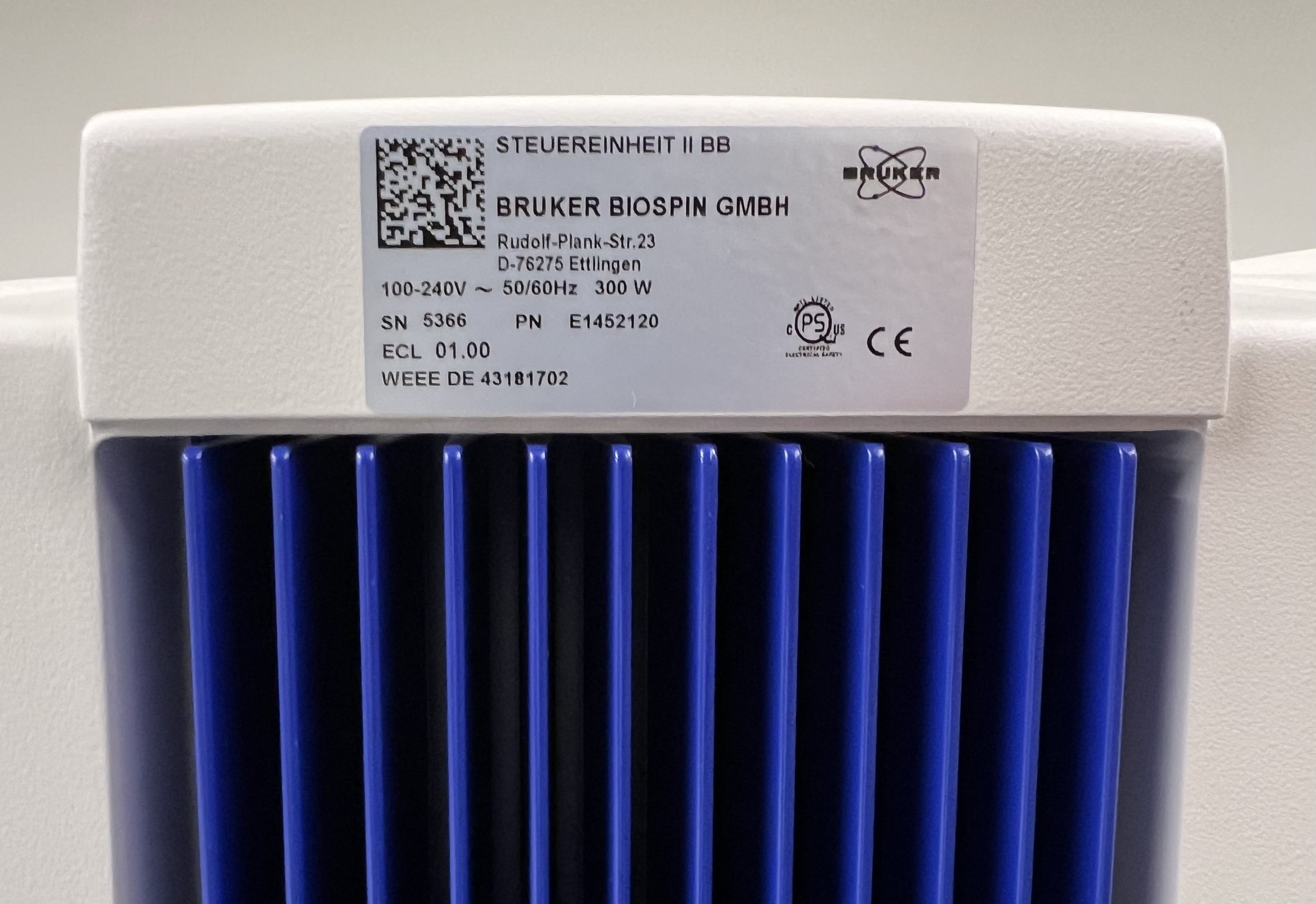

-minispec mq control unit N(F series), E1452120_01, with broad band transmitter consisting of:
-Electronics Unit Housing: EMI-sheidled, CE-conform, closed housing, maintenance-free, air cooled, wide-line power supply, LEDs for convenient diagnosis
-Central processing Unit: Embedded CPU with real-time processor unit, dynamic RAM and Flash-ROM for firmware. 100 Mbit Ethernet adapter to host PC. Fully featured remote control via Minispec software.
-Direct Digital RF Frequency Generation and Puls Programmer: Frequency range, 5-65 MHz with 1 Hz stepping, resolution better than 1ppm. Pulse programmer, 20 ns timing resolution, virtually unlimited number of pulse generations. Phase resolution better than 0.2degrees.
-REceiver/Analog digital Converter: Digital quadrature receiver, variable gain and variable digital filter. Highly linear 14bit digitizer with up to 12.5 MHz digitization rate (dwell time80 nanoseconds). 2x32k Number of complex data points.
-Broad Band Transmitter: Broad band transmitter with 7.5 MHz: 250 W; 10 MHz: 300 W; 20 MHz: 300 W; 40 MHz: 300 W; 60 MHz: 250 W output power.
-Software included: the minispec software for data acquisition for Microsoft Windows including daily check, update setting, status logging, auto probe recognition of plug-and-play probes, and suitable Minispec application pools, fitting to the proposed Minispec hardware.
-minispec mq60 magnet, 1.41 T, 40 MHz, 10 m air gap, consisting of:
-40 MHz, 0.94 Tesla minispec magnet system with 15 mm air gap.
-Compatible with all 60 MHz probes for proton and fluorine containing samples.
-Magnet temperature control with digital PID control, pre-selection of magnet temperature (range 35C to 45C). Temperature stability better than 0.01C. Fast magnet pre-heat mode for rapid warm-up.
-EMI shielded, CE-Conform Housing with zero maintenance. Built in sample storage compartment (up to 18mm small diameter) and LEDs for convenient diagnosis (on-temperatrure, connection).
-Optical sample detector, based on optical technology for reliable and interference free sample-in triggering and automatic land of the minispec TD_NMR acquisition. Software configuration active/passive
